easye-60i electric linear actuator

EasyE-60i

The new easyE-60i intelligent electric linear actuator can do significantly more! They not only impress with their slim design in combination with very high forces. The integration of the controller in the actuator opens up countless new possibilities for you. This model has customizable stroke lengths from 50 to 750mm. This model is available in high quality powder coated steel, or stainless steel. This electric linear actuator is IP66 rated for harsh environments. The standard temperature range is -5°C to +70°C. There are low and high temperature range variants upon request (Low -40°C to +70°C, and High -5°C to +90°C). Cable: 1m, 2X0.65mm² (AWG19), Ø = 4.8mm, black, Molex Mini-Fit Jr. 6 pin

  • • Integrated controller
  • • Industrial interface MODBUS RTU on RS485
  • • Maximum force: 10,000N (2248lbs)
  • • Speed: 3 - 33mm/s (77in/min)
  • • Stroke: 50 - 750mm (2 - 29 1/2")
  • • Voltage: 12VDC or 24VDC
  • • SDB (SINGLE DIRECTION BASIC) Simple control to move the actuator up and down. In combination with the iConnect-Box, it becomes a plug-and-play solution.
  • • SDH (SINGLE DIRECTION HALL) Compared to the SDB controller, this controller also emits a Hall signal
  • • SDP (SINGLE DIRECTION POSITION) This controller also outputs an analog position signal (0V-5V or 0V-10V).
  • • SPP (SINGLE POSITION POSITION) With this controller, a specific position can be controlled via an analog voltage signal.
  • • SBS (SINGLE BUS STATUS) This controller is operated completely via Modbus-RTU RS485
  • • MDO (MULTIPLE DIRECTION OVERRIDE) With this controller, up to 8 actuators can easily be operated synchronously

Dimensions

easyE-60i Dimensions
EL Clevis rear
 UL/EN60.601 Harsh environment Emergency
lowering/spline
Stoke + 373* (14 11/16") - +15 (5/8") +25 (15/16") +31 (1 1/4")/+10 (3/8")

*If stroke > 400mm: EL+25mm (not Harsh-Environment version) Axial backlash: +/- 0,5mm, generally length tolerance +/- 1mm


Weight of the actuators:

Stroke length mm (in) 50
(1 7/8")		 100
(3 7/8")		 150
(5 7/8")		 200
(7 7/8")		 250
(9 7/8")		 300
(11 3/4")		 350
(13 7/8")		 400
(15 3/4")		 500
(19 3/4")		 750
(29 1/2")
Weight kg (lbs) 4.1
(9.03)		 4.4
(9.70)		 4.7
(10.36)		 5.0
(11.02)		 5.3
(11.68)		 5.6
(12.34)		 5.9
(13.00)		 6.2
(13.66)		 6.8
(14.99)		 7.6
(16.75)

*Actual weight may vary depending on model and options selected

Speed and forces

Gear ratio D E F G H
Maximum load N (lbs) 1900
(427.1)		 4300
(966.6)		 6600
(1483.7)		 8100
(1820.9)		 10000
(2248.0)
Speed at maximum load mm/s (in/min) 26
(61.4)		 12
(28.3)		 8
(18.8)		 6
(14.1)		 5
(11.8)

*Max. load limited for stroke length > 400mm: 5000N

Speed/Force

easyE-60i speed & force graph

Force/Current

easyE-60i force & current graph

I-CONNECT-BOX

Simple connection between:

  • • Actuator and Handset
  • • Actuator and power supply
  • • Actuator and PC for programming of the controller
  • • Several actuators (MDO controller) for synchronous operation

EASYE-I HANDSET

  • • Handset with up/down function
  • • With the help of the iConnect box, simply plug it in and get started

EASYE-I POWER SUPPLY

  • • Supply your actuator with power
  • • Power supply for our easyE-35i
  • • Power 24V / DC 2A
  • • With the help of the iConnect box, simply plug it in and get started

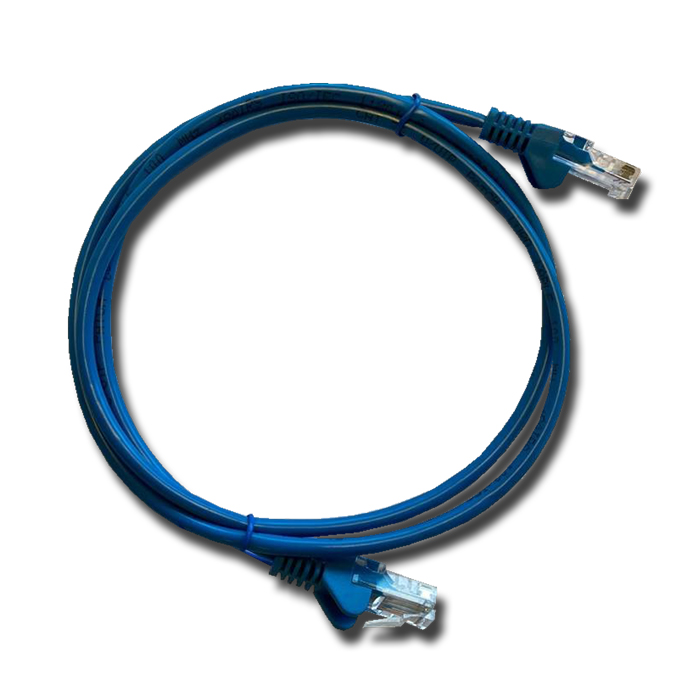

I-CONNECT CABEL

  • • Connect several iConnect boxes
  • • Create a group of actuators (MDO)
  • • Lengths: 0.25m, 1m, 5m, 10m, 20m

Connecting parts - Motor side

Hinge eye
Hinge eye
Aluminium
  • Code: A3M
  • Maximum static load: 16800N (3776lbs)
Stainless Steel 316
  • Code: C3M
  • Maximum static load: 16800N (3776lbs)
Hinge eye with spherical bearings
Hinge eye with spherical bearings
Aluminium
  • Code: E3M
  • Maximum static load: 11000N (2473lbs)
Stainless Steel 316
  • Code: J3M
  • Maximum static load: 11000N (2473lbs)
Clevis
Clevis
Aluminium
  • Code: F3M
  • Maximum static load: 16800N (3776lbs)
Stainless Steel 316
  • Code: H3M
  • Maximum static load: 16800N (3776lbs)

Connecting parts - Cylinder side

Hinge eye
Hinge eye
Aluminium
  • Code: A3K
  • Maximum static load: 16800N (3776lbs)
Stainless Steel 316
  • Code: C3K
  • Maximum static load: 16800N (3776lbs)
Hinge eye with spherical bearings
Hinge eye with spherical bearings
Aluminium
  • Code: E3K
  • Maximum static load: 11000N (2473lbs)
Stainless Steel 316
    Code: J3K
  • Maximum static load: 11000N (2473lbs)
Clevis
Clevis
Aluminium
  • Code: F3K
  • Maximum static load: 16800N (3776lbs)
Stainless Steel 316
  • Code: H3K
  • Maximum static load: 16800N (3776lbs)

Bracket - Cylinder Side

EEL900BA60-1MS Bracket
EEL900BA60-1MS
Zinc Plated Steel
  • Maximum load: 10,000N (2248lbs)

Bracket - Piston Rod Side

EEL900BA60-1KS Bracket
EEL900BA60-1KS
Zinc Plated Steel
  • Maximum load: 10,000N (2248lbs)

Recommended Mounting Methods

  • Do not clamp actuators on tubing.
  • Always keep both brackets mounted in the same orientation and ensure to flush mount actuator.
  • Brackets must always be able to rotate on axels in mountings.
easyE Montage

Please note

Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded. Radial forces might have an adverse affect on the performance or lead to damage of the actuator. Keep the piston tube clean. Longer cable lengths may cause voltage drop which affects the performance of the actuator. For medical applications maximum ambient temperature is 48°C. The dust and water sealing of "harsh environment" actuators might affect their performance. All specifications are for 25 ºC ambient. Low temperature might affect performance
