easye-50 electric linear actuator

EasyE-50

The easyE-50 model has customizable stroke lengths from 50mm (1 7/8") to 750mm (29 1/2"). This model is available in high quality powder coated steel, or stainless steel. This electric linear actuator is IP66 rated for harsh environments. The standard temperature range is -5°C to +70°C. There are low and high temperature range variants upon request (Low -40°C to +70°C, and High -5°C to +90°C). Cable: 1m, 2X0.65mm² (AWG19), Ø = 4.8mm, black, Molex Mini-Fit Jr. 6 pin

Dimensions

easyE-50 Dimensions
  EL Clevis rear
Hall Sensor UL/EN60.601 Harsh environment
Gear ratio: C, D, E, F Stoke + 240 (9 7/16") - +15 (5/8") +15 (5/8") +14 (9/16")
Gear ratio: G, H Stoke + 255 (10") - +15 (5/8") +15 (5/8") +14 (9/16")

*Axial backlash: +/- 0,5mm, generally length tolerance +/- 1mm


Weight of the actuators:

Stroke length mm (in) 50
(1 7/8")
100
(3 7/8")
150
(5 7/8")
200
(7 7/8")
250
(9 7/8")
300
(11 3/4")
350
(13 7/8")
400
(15 3/4")
500
(19 3/4")
750
(29 1/2")
Weight kg (lbs) 2.1
(4.85)
2.3
(5.07)
2.6
(5.73)
2.8
(6.17)
3.1
(6.83)
3.3
(7.27)
3.6
(7.93)
3.8
(8.37)
4.3
(9.47)
5.6
(12.34)

*Actual weight may vary depending on model and options selected

Speed and forces

Gear ratio C* D E F G H
Maximum load N (lbs) 500
(112.4)
1750
(393.4)
2200
(494.5)
3100
(696.9)
4500
(1011.6)
4500
(1011.6)
Speed at maximum load mm/s (in/min) 70
(165.3)
20
(47.2)
17
(40.1)
12
(28.3)
6
(14.1)
4
(9.4)

*Max. load limited for stroke length >= 500mm: 2000N
*Recommended max. current: 12VDC = 3.6A and 12VDC = 16A, 24VDC=8A

Buy It Now

Model Stroke Length Extended Length Load handling Speed Voltage
EEL50-200-E24A200011M 200mm
(7 7/8")
440mm
(17 5/16)
2200N
(494lbs)
17 mm/s
(40in/min)
24VDC CAD BUY
EEL50-400-E24A200011M 400mm
(15 3/4")
640mm
(25 3/16")
2200N
(494lbs)
17 mm/s
(40in/min)
24VDC CAD BUY

Speed/Force

easyE-50 speed & force graph

Force/Current

easyE-50 force & current graph

Connecting parts - Motor side

Hinge eye
Hinge eye
Aluminium
  • Code: A2M
  • Maximum static load: 16800N (3776lbs)
Polyamid (PA)
  • Code: B2M
  • Maximum static load: 4700N (1056lbs)
Stainless steel 316
  • Code: C2M
  • Maximum static load: 16800N (3776lbs)
Hinge eye with spherical bearings
Hinge eye with spherical bearings
Aluminium
  • Code: E2M
  • Maximum static load: 11000N (2472lbs)
Clevis
Clevis
Aluminium
  • Code: F2M
  • Maximum static load: 16800N (3776lbs)
Polyamid (PA)
  • Code: G2M
  • Maximum static load: 4700N (1056lbs)
Stainless steel 316
  • Code: H2M
  • Maximum static load: 16800N (3776lbs)

Connecting parts - Cylinder side

Hinge eye
Hinge eye
Aluminium
  • Code: A2K
  • Maximum static load: 16800N (3776lbs)
Polyamid (PA)
  • Code: B2K
  • Maximum static load: 4700N (1056lbs)
Stainless Steel 316
  • Code: C2K
  • Maximum static load: 16800N (3776lbs)
Hinge eye with spherical bearings
Hinge eye with spherical bearings
Aluminium
  • Code: E2K
  • Maximum static load: 11000N (2472lbs)
Clevis
Clevis
Aluminium
  • Code: F2K
  • Maximum static load: 16800N (3776lbs)
Polyamid (PA)
  • Code: G2K
  • Maximum static load: 4700N (1056lbs)
Stainless steel 316
  • Code: H2K
  • Maximum static load: 16800N (3776lbs)

Bracket - Cylinder Side

EEL900BA50-1MS Bracket
Bracket
Zinc Plated Steel
  • Maximum load: 4500N (1011lbs)

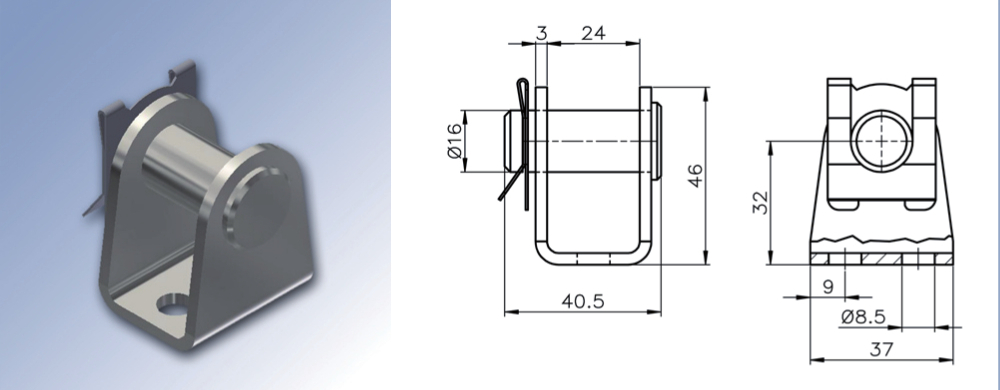

Bracket - Piston Rod Side

EEL900BA50-1KS Bracket
Bracket
Zinc Plated Steel
  • Maximum load: 4500N (1011lbs)

Recommended Mounting Methods

  • Do not clamp actuators on tubing.
  • Always keep both brackets mounted in the same orientation and ensure to flush mount actuator.
  • Brackets must always be able to rotate on axels in mountings.
Mounting the easyE-50 actuator

Please note

Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded. Radial forces might have an adverse affect on the performance or lead to damage of the actuator. Keep the piston tube clean. Longer cable lengths may cause voltage drop which affects the performance of the actuator. For medical applications maximum ambient temperature is 48°C. The dust and water sealing of "harsh environment" actuators might affect their performance. All specifications are for 25 ºC ambient. Low temperature might affect performance
