EEL-S1 Controller

EEL-S1

The S1 controller offers a simple plug & play solution for our actuators for individual, parallel and synchronous operation. The controllers are pre-configurated and adapted to the respective actuator. So in order to start operation, the actuator only has to be connected with the controller. It is possible to control up to 3 actuators in parallel.

Features:

  • Flat, compact design
  • Highly efficient switching power supply
  • For up to 3 motors. Max. 8A per channel, in total max. 16A
  • Output voltage: 24V
  • Support of hall sensors
  • Up to 2 motor categories (requires EEL-LDH-ST2 handset)
  • Cascading of up to 4 S1 controllers
  • 0.3 watt Standby-consumption (0.1 watt optional)
  • Dimensions: 264 x 103 x 37 mm
  • Operating temperature: +0 °C - +30 °C
  • Protection rating: IP20
  • Supply voltage 120VAC (230VAC) available
Dimensions
EEL-S1 Dimensions
Connections
EEL-S1 Connections
  • HS Handset
  • 1 Motor 1
  • 2 Motor 2
  • 3 Motor 3
  • K For external sensors
  • NB Power plug
  • E Grounding
Handsets

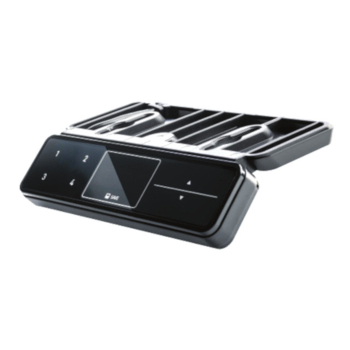

EEL-LDH-Basic-DN EEL-LDH-ST1 EEL-LDH-FX EEL-LDH-ST2
EEL-LDH-Basic-DN Handset
  • Up/Down
  • Compact size

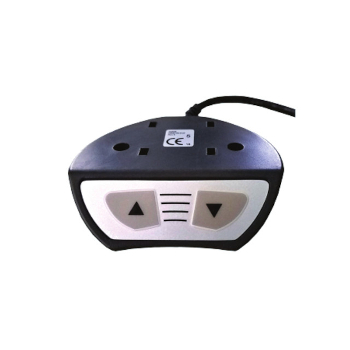

 EEL-LDH-ST1 Handset
  • Up/Down
  • Compact size
 EEL-LDH-DOWN Handset
  • Up/Down
  • 4 memory positions
  • 4-digit display for inch or cm
 EEL-LDH-ST2 Handset
  • Up/Down
  • Up to 2 motor groups
  • 4 memory positions
  • 3-digit display for inch or cm
EEL-LDH-Basic-DN EEL-LDH-Basic-DN Handset
  • Up/Down
  • Compact size
EEL-LDH-ST1 EEL-LDH-ST1 Handset
  • Up/Down
  • Compact size
EEL-LDH-FX EEL-LDH-FX Handset
  • Up/Down
  • 4 memory positions
  • 4-digit display for inch or cm
EEL-LDH-ST2 EEL-LDH-ST2 Handset
  • Up/Down
  • Up to 2 motor groups
  • 4 memory positions
  • 3-digit display for inch or cm
